自定义 SP 导出器

自定义SP导出器

功能

对Texture Set进行命名验证，以管理名称和存储位置的一致性
根据我们指定的类型导出限制分辨率大小的Texture
根据Texture类型自动导出到不同文件夹

自定义导出器

命名规则验证

检查每个Texture的命名规则，将Texture分配不同的类型和不同的文件夹。

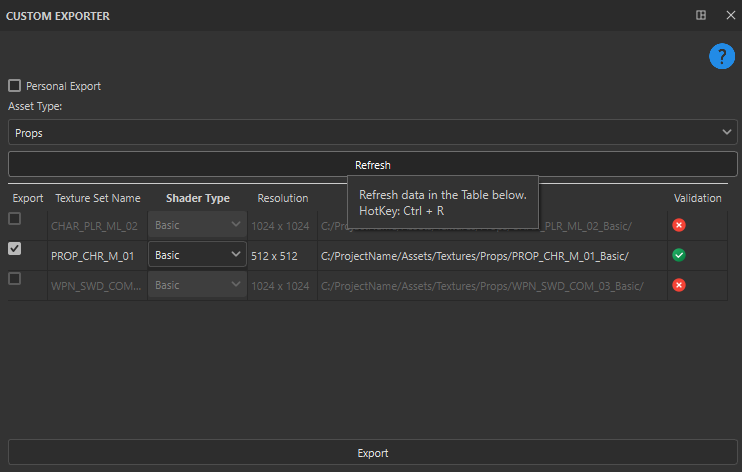

突出显示并自动选择当前类型的所有Texture。

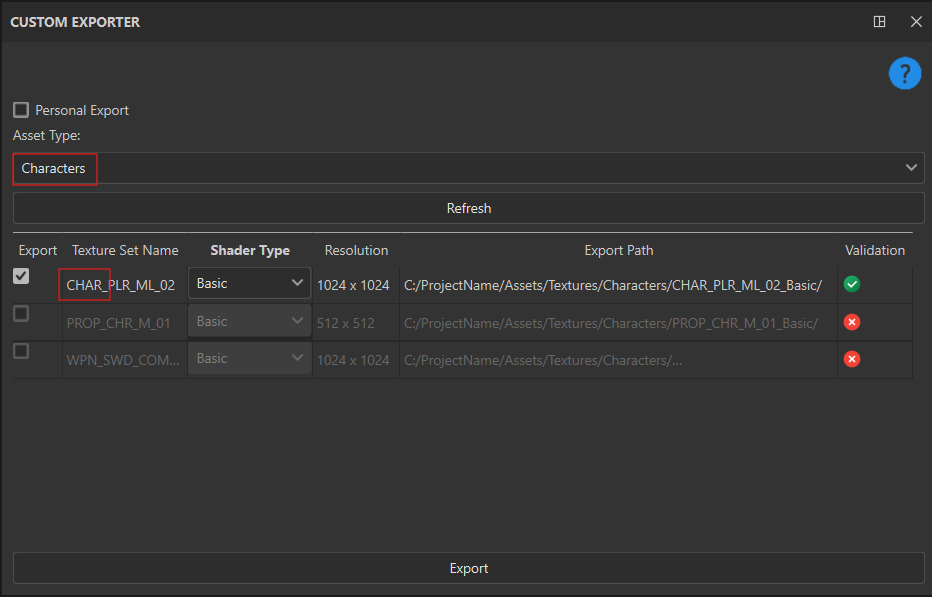

角色Texture自动验证

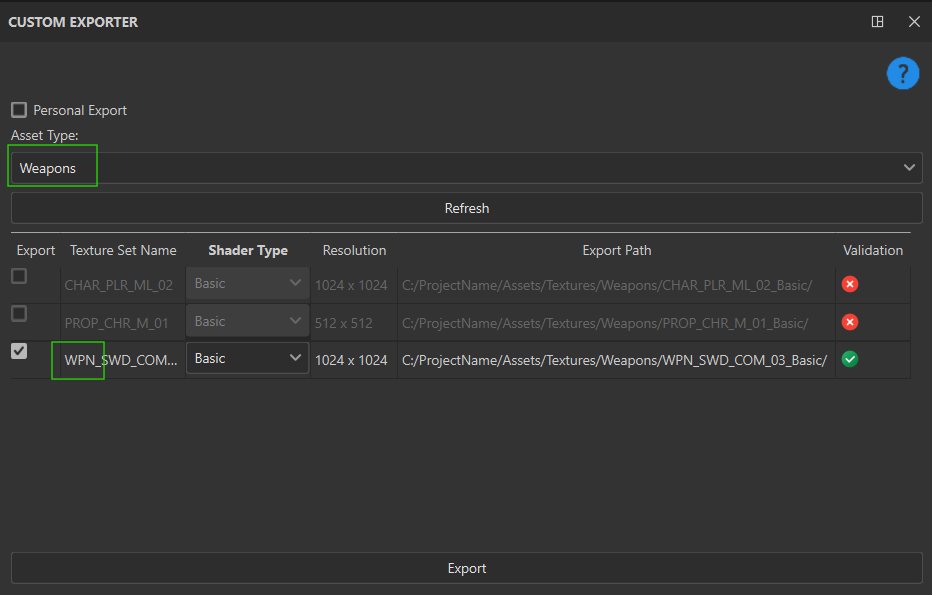

武器Texture自动验证

命名规则验证

    def validate_texture_sets(self):
        asset_type = self.asset_type_cmbx.currentText()
        self.textsets_with_overbudget_res = []
        for i, texture_set in enumerate(self.all_texture_sets):
            res_is_valid, res_validation_details = module_validation_resolution.validate_res(asset_type, texture_set.get_resolution())
            validation_item = QTableWidgetItem()
            export_checkbox = self.textset_table.cellWidget(i, 0)
            if res_is_valid:
                name_is_valid, name_validation_details = module_validation_name.validate_name(asset_type, texture_set.name())
                if name_is_valid:
                    validation_item.setIcon(self.icon_validation_ok)
                    validation_item.setToolTip(f"Texture set validation are AVAILABLE for texture set {i+1} \
                                            \n{texture_set.name()}")
                    export_checkbox.setToolTip(f"Specify if Texture Set #{i+1}: {texture_set.name()} \
                                                should be processed during the export or skipped")
                else:
                    validation_item.setIcon(self.icon_validation_fail)
                    validation_item.setToolTip(f"Texture set Name validation is FAILED for texture set {i+1} \
                                            \n{texture_set.name()} \
                                            \nReason: {name_validation_details} \
                                            \nExport of this texture is disabled until it's valid")
                    export_checkbox.setToolTip(f"Texture set Name validation is FAILED for texture set {i+1} \
                                            \n{texture_set.name()} \
                                            \nReason: {name_validation_details} \
                                            \nExport of this texture is disabled until it's valid")
            else:
                validation_item.setIcon(self.icon_validation_fail)
                validation_item.setToolTip(f"Texture set Resolution validation is FAILED for texture set {i+1} \
                                            \n{texture_set.name()} \
                                            \nReason: {res_validation_details} \
                                            \nExport of this texture is disabled until it's valid")
                export_checkbox.setToolTip(f"Texture set Resolution validation is FAILED for texture set {i+1} \
                                            \n{texture_set.name()} \
                                            \nReason: {res_validation_details} \
                                            \nExport of this texture is disabled until it's valid")
                self.textsets_with_overbudget_res.append(texture_set)
            export_checkbox.setChecked(res_is_valid and name_is_valid)
            export_checkbox.setEnabled(res_is_valid and name_is_valid)
            self.textset_table.setItem(i, 5, validation_item)
        if len(self.textsets_with_overbudget_res) > 0:
            self.open_dialog_res_confirmation()

命名验证的代码

分辨率大小验证

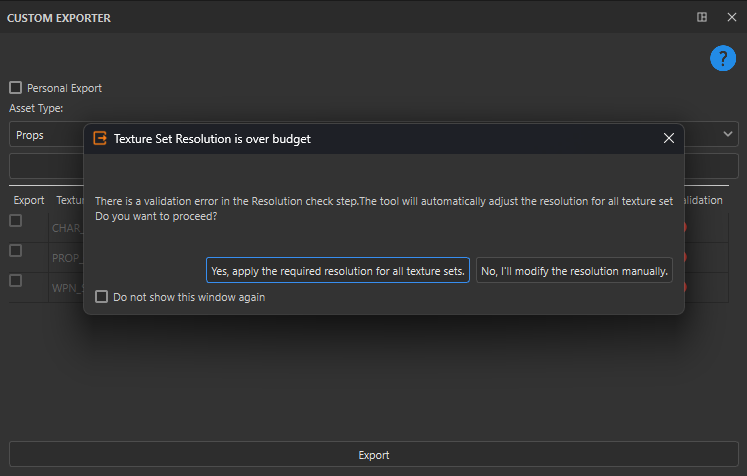

导出器会验证从 Painter 导出Texture是否遵循指定的分辨率预算，并防止项目中出现任何过高分辨率的Texture。

分辨率验证

    def open_dialog_res_confirmation(self):
        settings = QtCore.QSettings()
        if settings.value("diaglog_window_checkbox_state", QtCore.Qt.Unchecked) == QtCore.Qt.Unchecked:
            dialog = DiaglogWindow(self.icon_main_window)
            if dialog.exec_() == QDialog.Accepted:
                self.apply_required_res()
                self.on_refresh_textset_table()
            else:
                substance_painter.logging.log(severity=substance_painter.logging.WARNING,
                                            channel="Custom Exporter",
                                            message="Remember to manually fix the resolution in the teture setting. \
                                                \nValidation error would present fro export")
        else:
            substance_painter.logging.log(severity=substance_painter.logging.INFO,
                                            channel="Custom Exporter",
                                            message="dialog for resolution autofix was not trigger as per user settings")
    def apply_required_res(self):
        required_width, required_height = module_validation_resolution.get_required_res_from_asset_type(self.asset_type_cmbx.currentText())
        required_resolution = substance_painter.textureset.Resolution(required_width, required_height)
        for texture_set in self.textsets_with_overbudget_res:
            original_res = texture_set.get_resolution()
            texture_set.set_resolution(required_resolution)
            substance_painter.logging.log(severity=substance_painter.logging.INFO,
                                          channel="Custom Exporter",
                                          message=f"Applied required resolution for texture set {texture_set.name()} \
                                          \nWas: {original_res}, Now:{required_resolution}")

命名规则验证代码

导出器

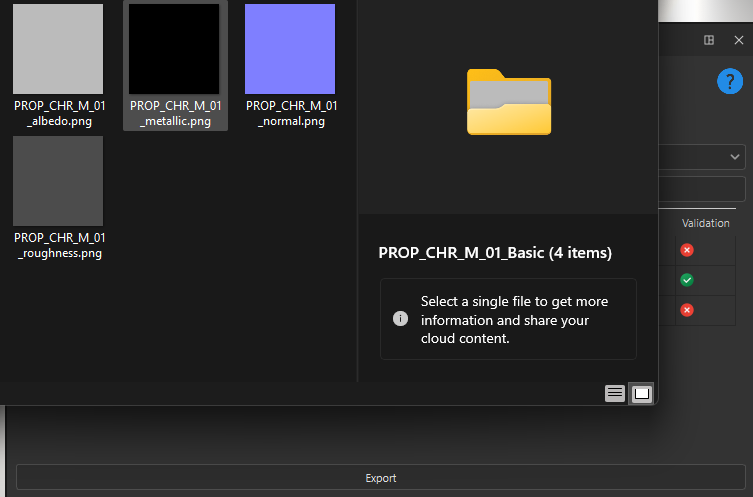

将不同的Texture根据其自身类型导出到不同的文件夹。

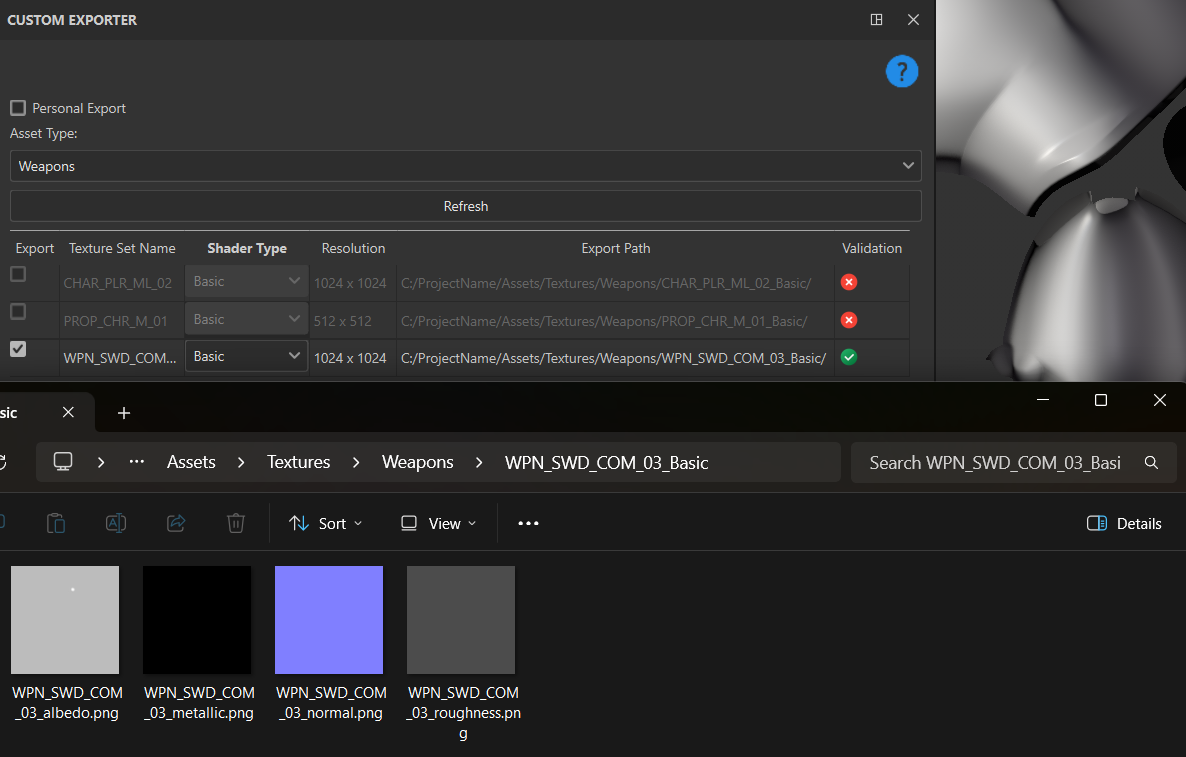

自动导出Texture

    def on_export_requested(self):
        if self.all_texture_sets != None:
            for i in range(len(self.all_texture_sets)):
                should_export = self.textset_table.cellWidget(i, 0).isChecked()
                if not should_export:
                    continue

                textset_name = self.textset_table.item(i, 1).text()
                shader_type = self.textset_table.cellWidget(i, 2).currentText()
                export_path = self.textset_table.item(i, 4).text()
                module_export.export_textures(textset_name, shader_type, export_path)

命名规则验证代码
